Model no
591

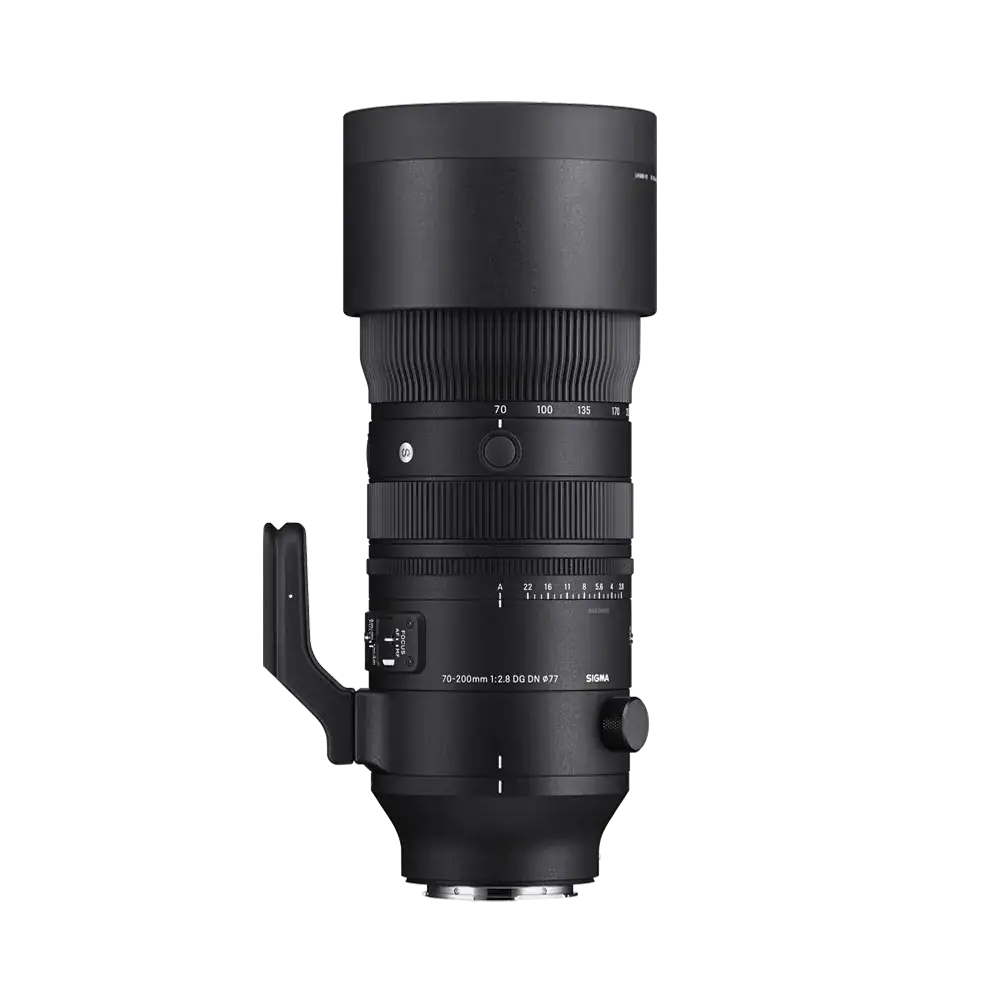

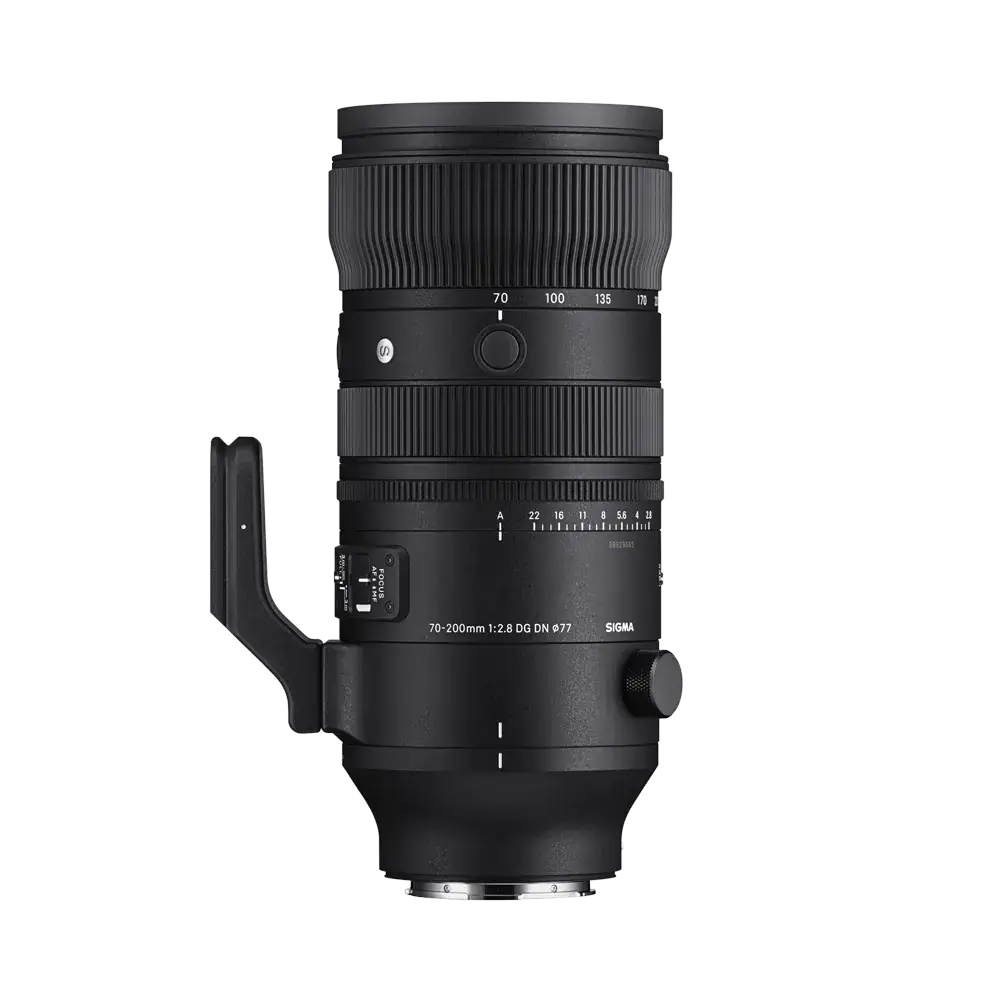

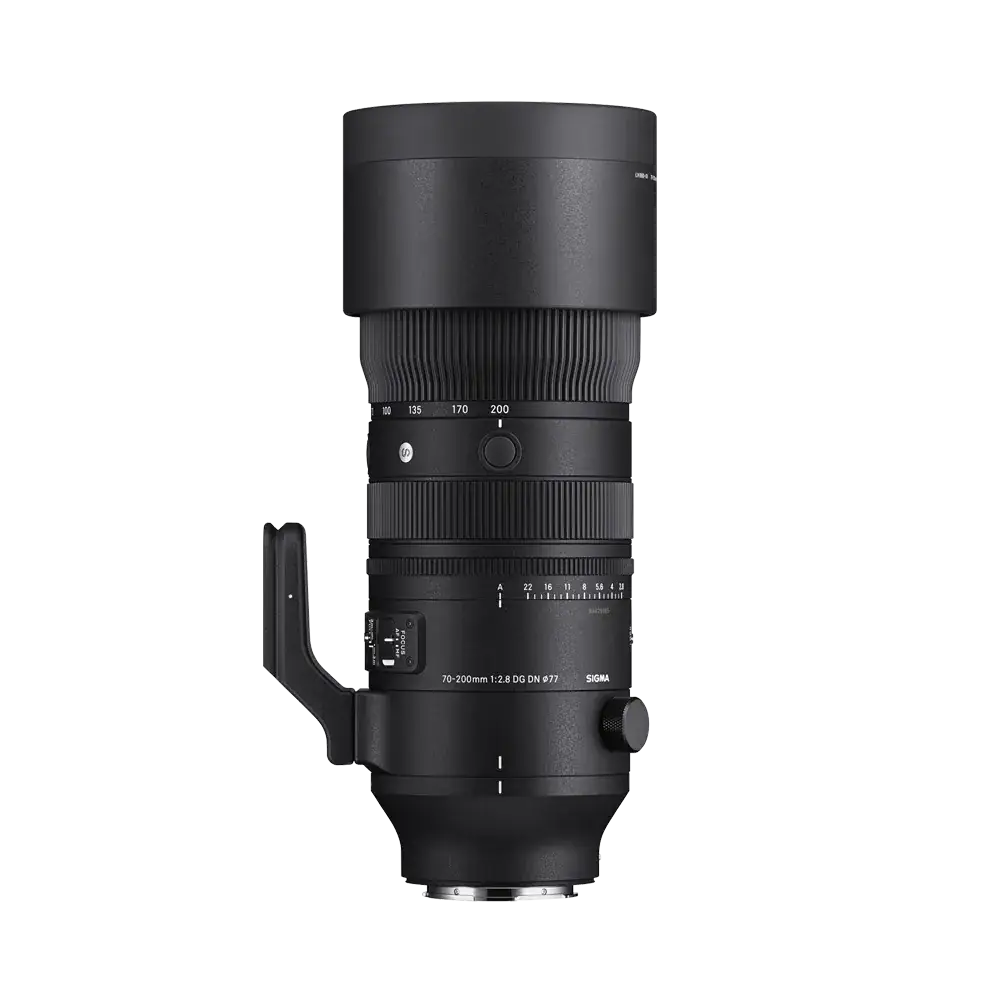

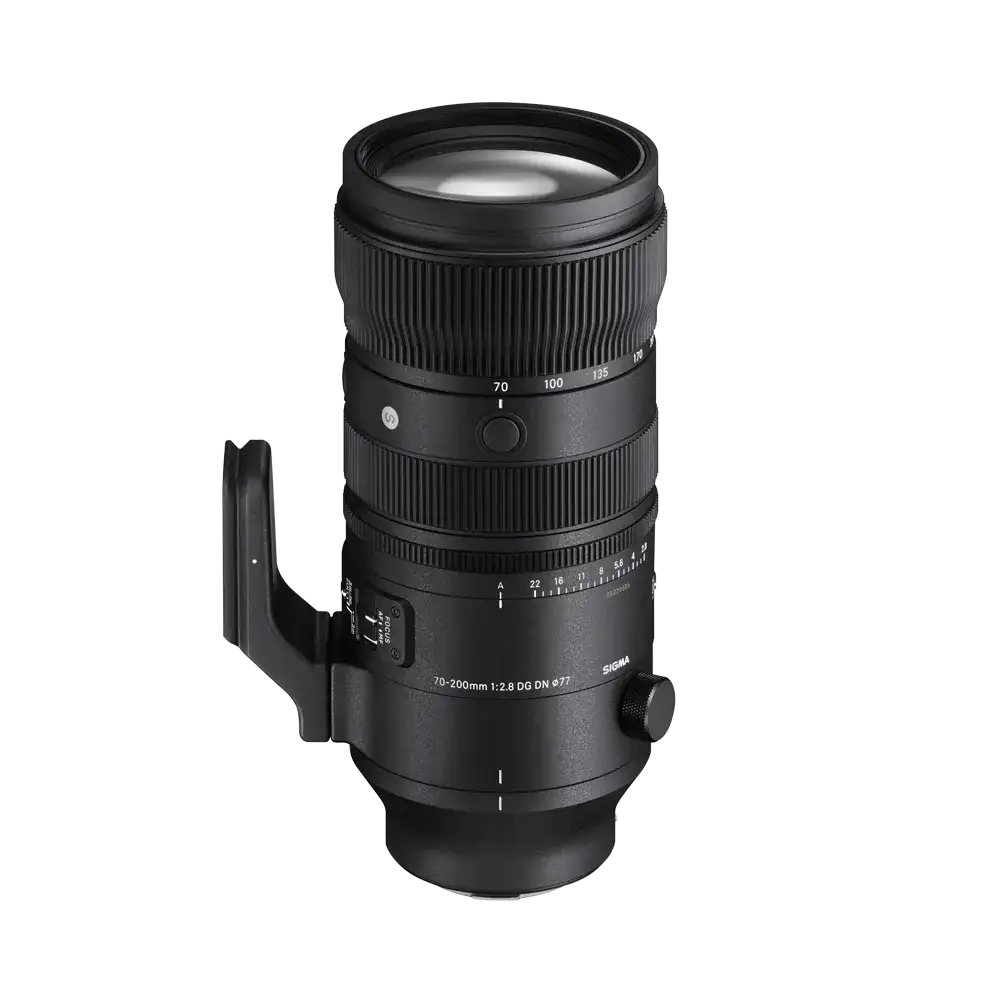

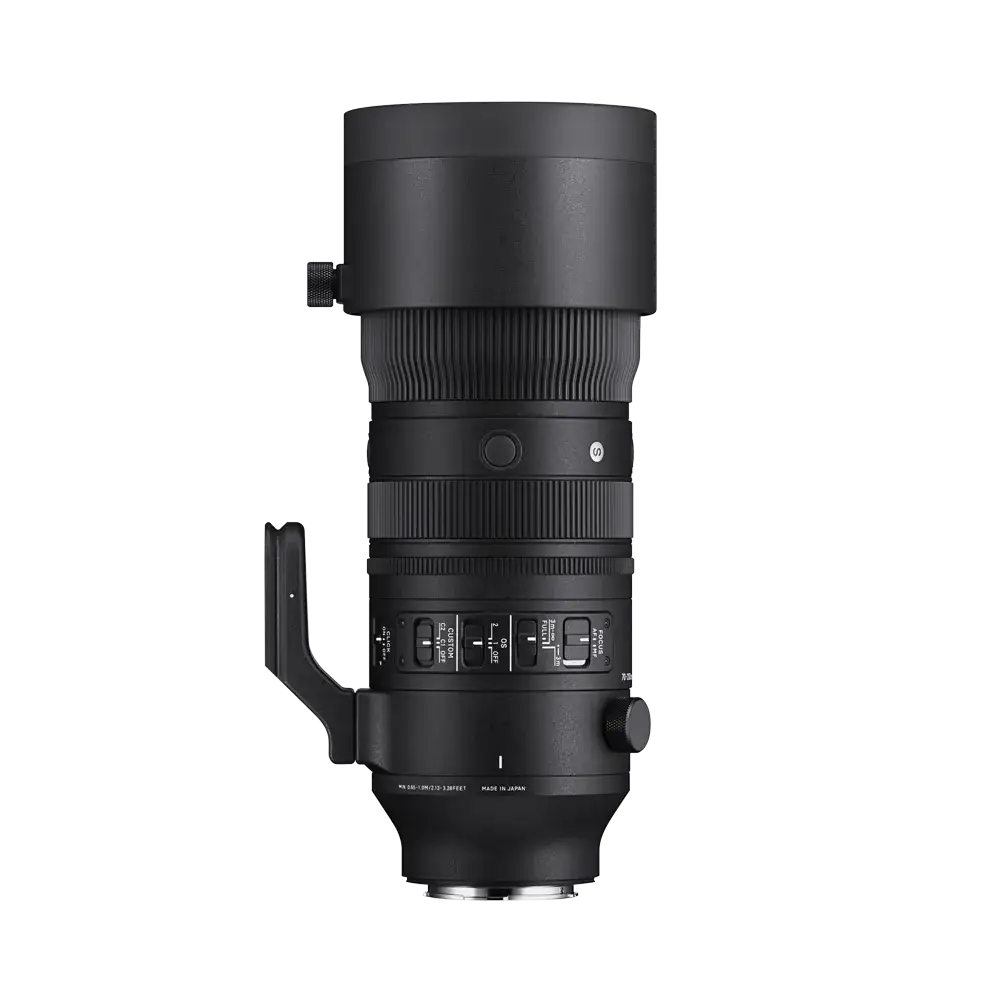

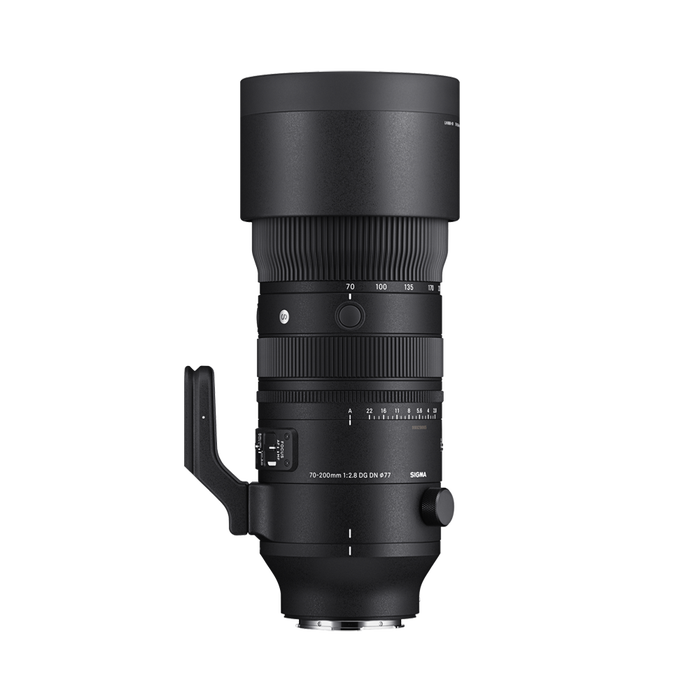

70-200mm F2.8 DG DN OS

1 699.00
  • F2.8 aperture
  • High-speed AF
  • Optical Stabilizer with up to 7.5 stops of correction effect
  • Dual HLA (High-response Linear Actuator)
  • Inner zoom mechanism
  • Minimal focus-breathing
  • Top-level build quality
  • Dust and splash resistant
  • Manual aperture ring
  • Arca-Swiss compatible tripod socket
In Stock In Stock

Performance, reliability, and mobility at its highest level.

Packed with all the technology SIGMA has to offer;

70-200mm F2.8, worthy of the flagship

The large F2.8 aperture provides stable and high descriptive performance at all zoom and focus ranges. The high-speed AF with a dual HLA (High-response Linear Actuator) based on a floating focus structure, and the Optical Stabilizer function with the OS2 algorithm with up to 7.5 stops of correction effect*, ensure that users can take the right shot when there is no room for error. The highly mobile lens with high durability, rigidity, and texture is equipped with a wealth of functions to assist comfortable shooting, including an inner zoom mechanism for easy handling, as well as an aperture ring and switches with various customization functions.

*Based on CIPA guidelines (Measured at 70mm and 200mm with a 35mm full-frame image sensor)



High-speed AF and optical stabilizer function that maximize superior optical performance

The SIGMA 70-200mm F2.8 DG DN OS | Sports, developed with professional use in mind, offers not only high optical performance, but also high-speed AF with a dual HLA (High-response Linear Actuator) and an optical stabilizer function with up to 7.5 stops. The Sports line lenses offer high optical performance, and all functions are based on state-of-the-art technology.

Image by Liam Doran



High descriptive performance at all zoom and focus ranges

The latest optical design, which employs luxurious glass materials including 6 FLD and 2 SLD elements of special low-dispersion glass, delivers high resolving power throughout the entire zoom range. Three aspherical lenses are used, as they are now indispensable for superior optical performance and streamlined lens construction. The exceptionally high precision of the aspherical lenses, which take advantage of the technical capabilities of SIGMA's only production facility, the Aizu factory, further improves optical performance. The incorporated floating focus is advantageous in improving short-range performance, ensuring a stable, high-level image quality throughout the entire range from the minimum focusing distance to infinity.

High-speed AF with a dual HLA

The SIGMA 70-200mm F2.8 DG DN OS | Sports with floating focus has a structure in which the two focus groups move in opposite directions, thereby reducing the amount of focus lens movement by about half. In addition, the use of an HLA (High-response Linear Actuator) motor in each of the two focus groups enables high-speed autofocusing. In addition to being fast and accurate, the lens also employs a control program that is designed to be quiet, so users can shoot movies comfortably without worrying about noise.

OS2 algorithm in optical stabilizer function

The latest OS2 optical stabilization algorithm provides an extremely high image stabilization effect of 7.5 stops at the wide end and 5.5 stops at the telephoto end*. The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, and Mode 2 is ideal for panning shots of motorsports and other sports. In Mode 2, SIGMA’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, irrespective of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.

*Based on CIPA guidelines (Measured at 70mm and 200mm with a 35mm full-frame image sensor)



Image by Basith Paykat

Designed to minimize focus breathing

The lens has been designed to suppress focus breathing. The change in angle of view due to focus shift is minimized, creating a natural-looking focus shift when recording video.

Designed to minimize flare and ghosting

Flare and ghosting, which reduce image quality, are addressed under all conditions of incident light based on the most advanced simulation technology. High backlight resistance enables clear and sharp images under any lighting conditions.

Image by Xie Songshan

Top-level build quality condensed into a highly mobile lens

SIGMA is committed to excellent build quality in all its lenses. Among them, the SIGMA 70-200mm F2.8 DG DN OS | Sports, which is part of the Sports line, offers not only high weather resistance performance for shooting in harsh environments, but also improved quality and durability through the use of cutting-edge materials in appropriate places based on a streamlined optical and mechanical design. At the same time, a high level of mobility is also realized, resulting in a professional equipment that can be used with confidence over the long term.

High quality and durability despite its small size and lightweight

The latest optical and mechanical design streamlines the lens configuration and internal structure, resulting in a significantly smaller and lighter body than the previous SIGMA 70-200mm F2.8 DG OS HSM | Sports model. The body, including the hood, features a "multi-material structure" that optimally arranges materials such as magnesium, CFRP*1, and TSC*2. Even with enhanced mobility, the lens features SIGMA's renowned excellent build quality, including high durability, reliable rigidity, and various control rings and switches that have been carefully designed to feel good.

*1 CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.

*2 TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has high affinity to metal parts which contributes to high quality product manufacturing.


Adoption of inner zoom mechanism

The zoom mechanism employs an inner zoom. Since the total length of the lens does not change with zoom operation, it is easy to handle when shooting hand-held, highly stable when installed on a gimbal, and resistant to dust and water droplets.

Weatherability of Sports line specifications

The mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection are all dust and splash resistant* to prevent dust and dirt from entering the lens. Further, the front element of the lens features a water and oil repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.

*The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.

Image by Xie Songshan

A wealth of functions to assist professional photographers

In addition to an aperture ring, a magnesium tripod mount, and various switches, the highly mobile lens has a wealth of functions available, enabling a more comfortable and versatile  shooting experience for users.

Aperture ring

This is the first SIGMA zoom lens for still photography to be equipped with an aperture ring. It is also equipped with an aperture ring click switch and an aperture ring lock switch, allowing for aperture operation suited to the shooting application.

Tripod socket

The lens body incorporates an Arca-Swiss compatible magnesium alloy tripod socket. The detachable leg is designed for the SIGMA 70-200mm F2.8 DG DN OS | Sports in order to achieve a compact and lightweight design.

Customizable functions

Equipped with a Focus Limiter switch, the lens enables users to limit the focus driving range during AF when necessary, allowing quick and precise focusing.

Further, the lens features three AFL buttons* ready to be assigned to preferred functions using the camera. The AFL buttons are easy to operate regardless of how the camera is oriented or which settings are used.

For the L-Mount version, the SIGMA USB DOCK UD-11 can be used to set OS operation or focus limiter range for the Custom Mode switch.

* Only on compatible cameras. Available functions may vary depending on the camera used.

Tele Converter for L-Mount (1.4x / 2.0x)

The L-Mount version of the lens is compatible with the SIGMA TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2.0x). Using a tele converter, the focal length can be multiplied by 1.4x and even 2x, for AF-enabled shooting at ultra-telephoto focal lengths of up to 400mm.

Cover-type lens hood included

A lightweight, high-strength, exclusive cover-type lens hood made of CFRP* is included. In addition to its slim design that does not impair the mobility of the lens, the tip of the hood is rubberized to protect the lens from abrasion and scratches caused by placing the lens upside down.

*CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.


Additional features

  • Lens construction: 20 elements in 15 groups (6 FLD, 2 SLD, 3 aspherical elements)
  • OS (Optical Stabilizer) function with the latest “OS2” algorithm
  • Inner zoom
  • Inner focus system
  • Compatible with high-speed autofocus
  • HLA (High-response Linear Actuator)
  • Compatible with Lens Aberration Correction*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
  • Supports DMF and AF+MF

  • Compatible with AF assist (Sony E-mount only)

  • Nano Porous Coating

  • Super Multi-Layer Coating

  • Water and Oil Repellent Coating (front element)

  • Aperture ring

  • Aperture ring click switch

  • Aperture ring lock switch

  • AFL button (3 buttons)* Only on compatible cameras. Available functions may vary depending on the camera used.
  • Focus Limiter switch

  • Focus Mode switch

  • Support for switching between linear focus / non-linear focus ring settings (for L-Mount only)* Function available on supported cameras only.

  • OS switch
  • Custom Mode switch
  • Dust and Splash Resistant Structure
  • LENS HOOD LH860-01
  • TRIPOD SOCKET TS-151 *Detachable lens foot type
  • Compatible with SIGMA TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)
  • Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)
  • Designed to minimize flare and ghosting
  • Every single lens undergoes SIGMA’s proprietary MTF measuring system
  • 11-blade rounded diaphragm
  • High-precision, durable brass bayonet mount
  • Mount Conversion Service available
  •  “Made in Aizu, Japan” craftsmanship



Image by Aya Iwazaki

Specifications
More Information
Product LinesSports
Construction20 elements in 15 groups (6 FLD, 2 SLD, 3 aspherical elements)
Lens TypeTelephoto
Sensor SizeFull Frame
Angle of view34.3° -12.3°
Number of diaphragm blades11 (ümar diafragma)
Minimum apertureF22
Minimum focusing distance65 (W) - 100 (T) cm
Maximum magnification ratio1:5,2 (fookuskaugusel 200 mm)
Dimensions (diameter x length)

Sony E-mount
L-mount

⌀ 90,6 mm x 205,0 mm
⌀ 90,6 mm x 207,0 mm

Weight (g)

Sony E-mount
L-mount

1335 g
1345 g

Filter diameter77 mm
Edition numberS023
Supplied AccessoriesLens Hood LH860-01, Front Cap LCF-77mm III, Rear Cap LCR II, Soft Lens case LS-591SEL, Tripod Socket TS-151
AccessoriesWR Protector Filter 77mm, WR C-PL Filter 77mm, Protector Filter 77mm, USB-dock UD-11 (L-mount),
EAN

Sony E-mount
L-mount

085126591656
085126591694

* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

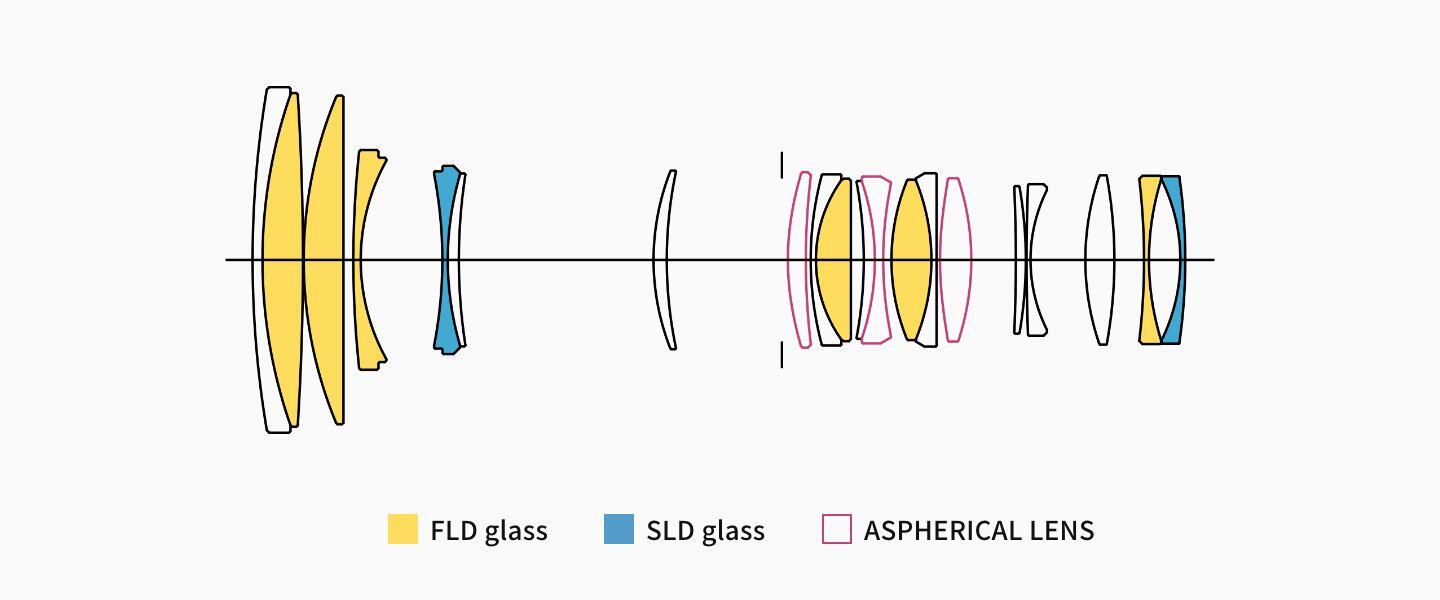

Lens Construction

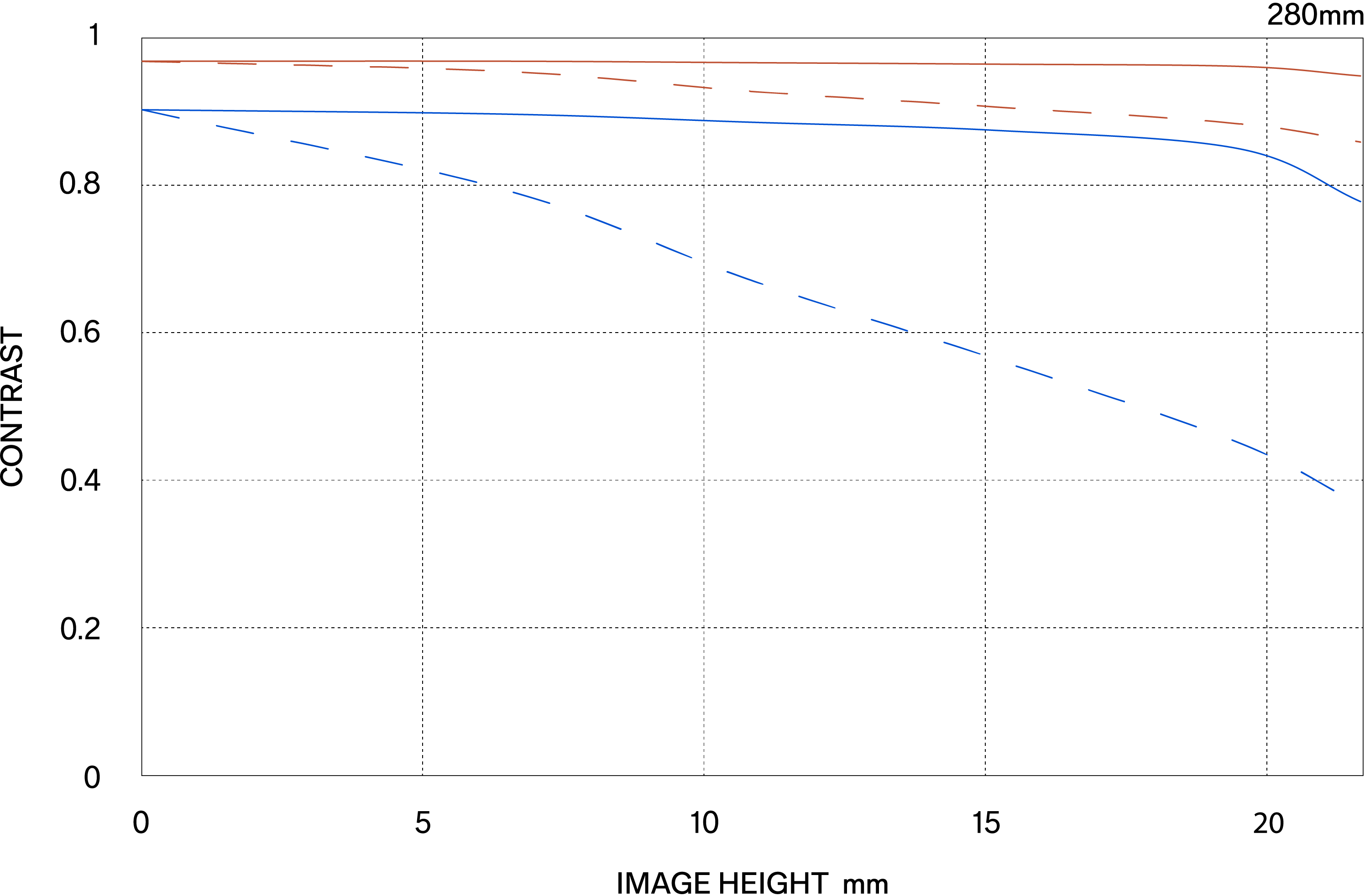

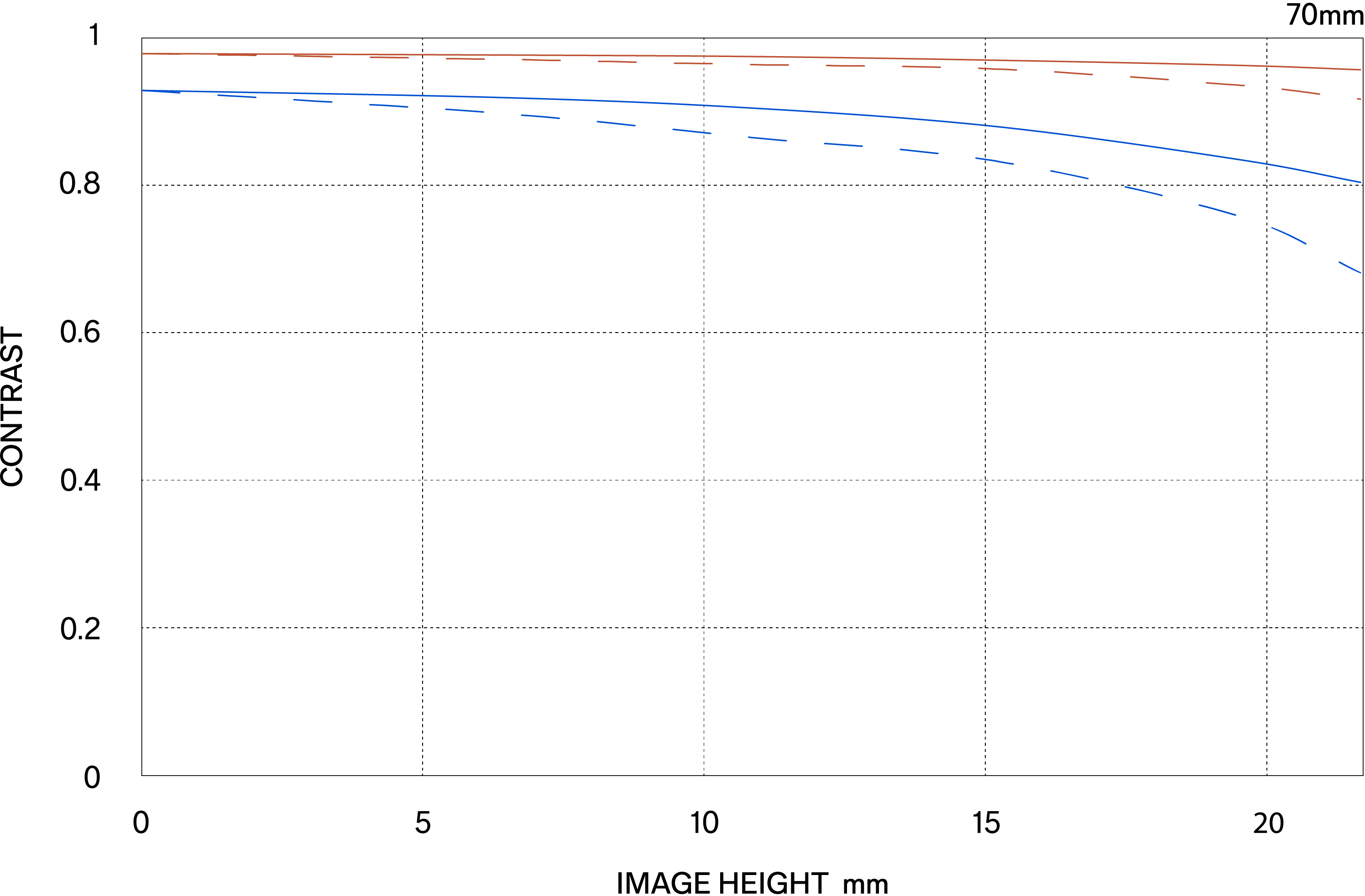

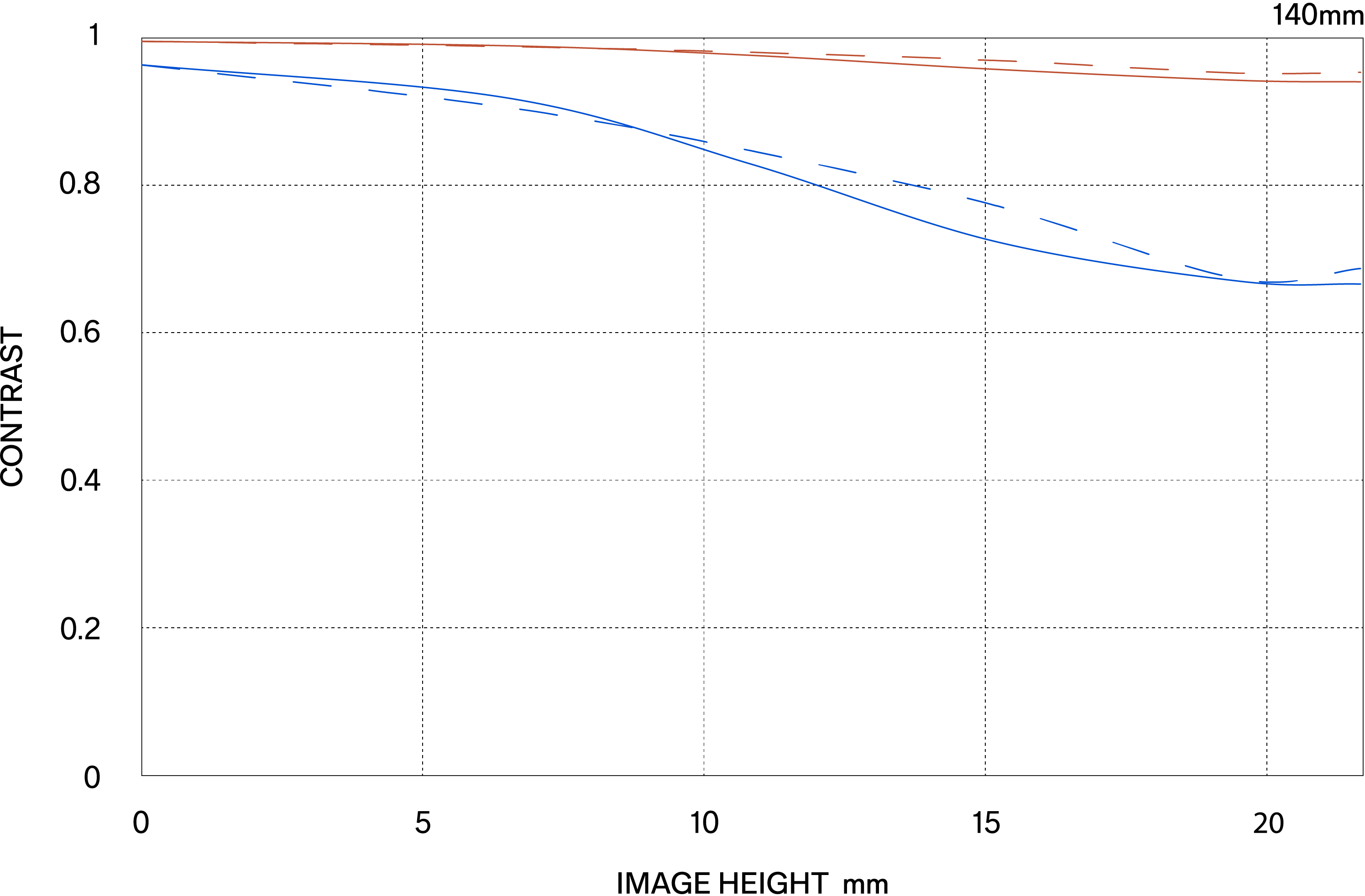

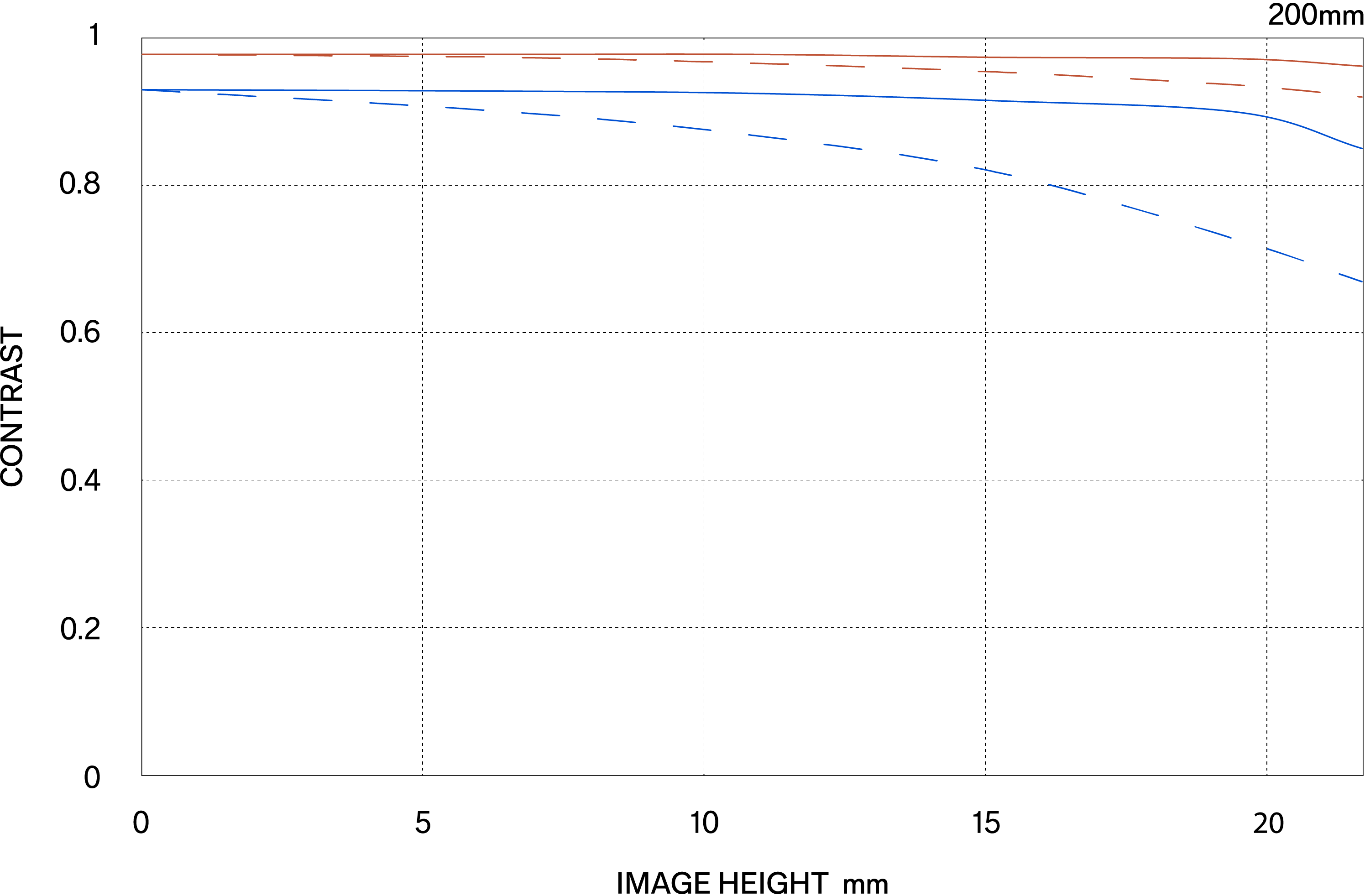

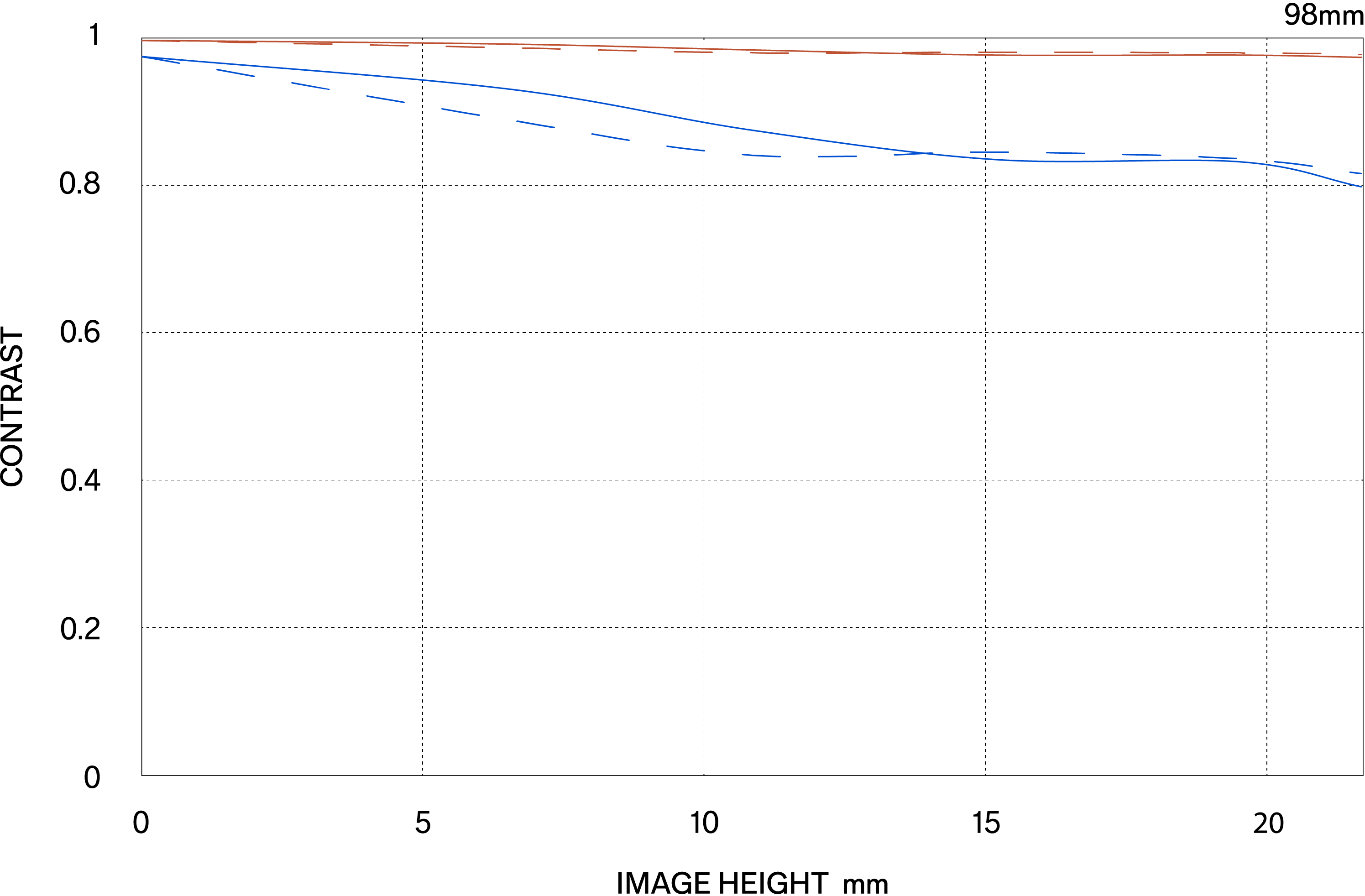

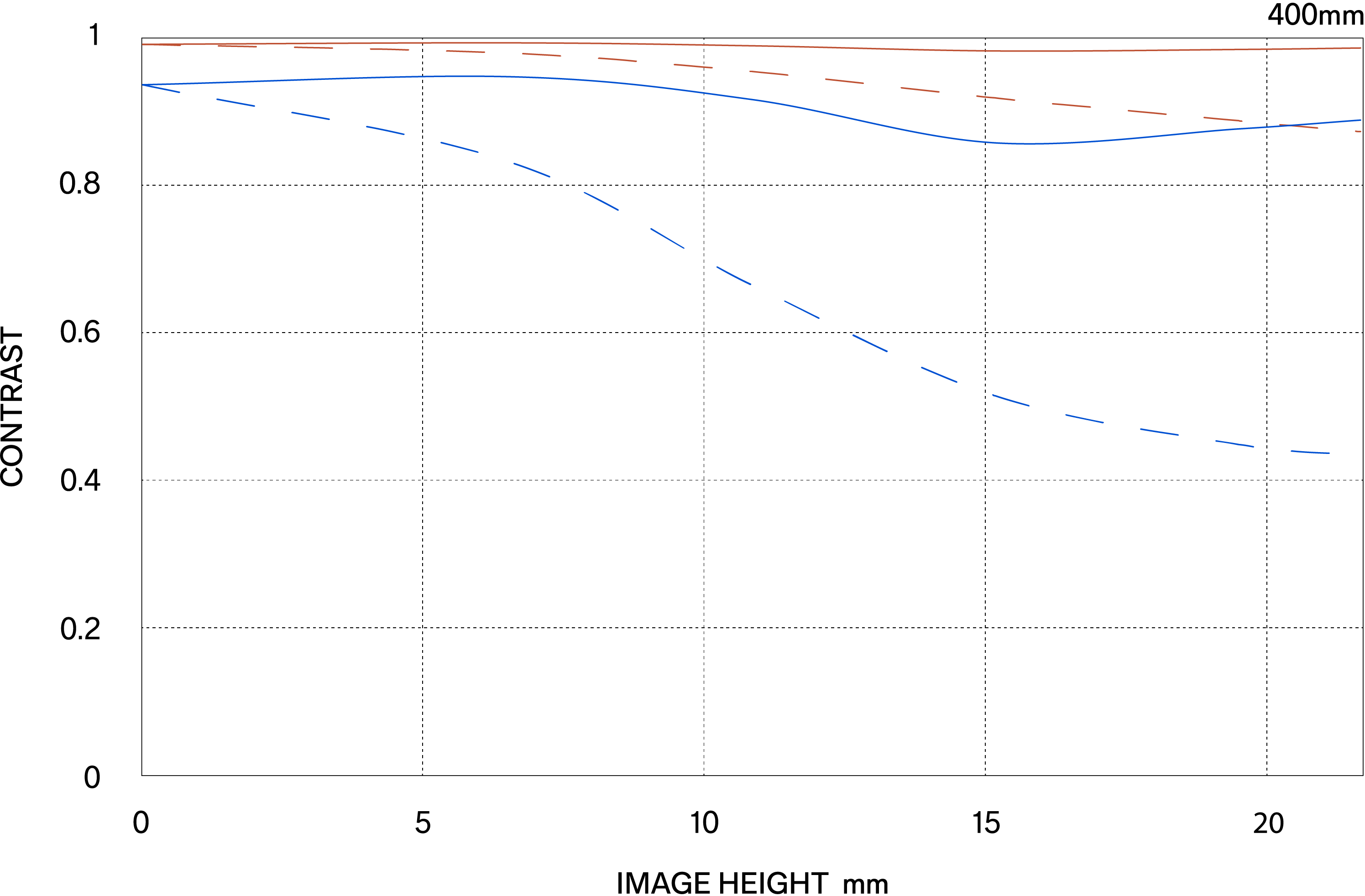

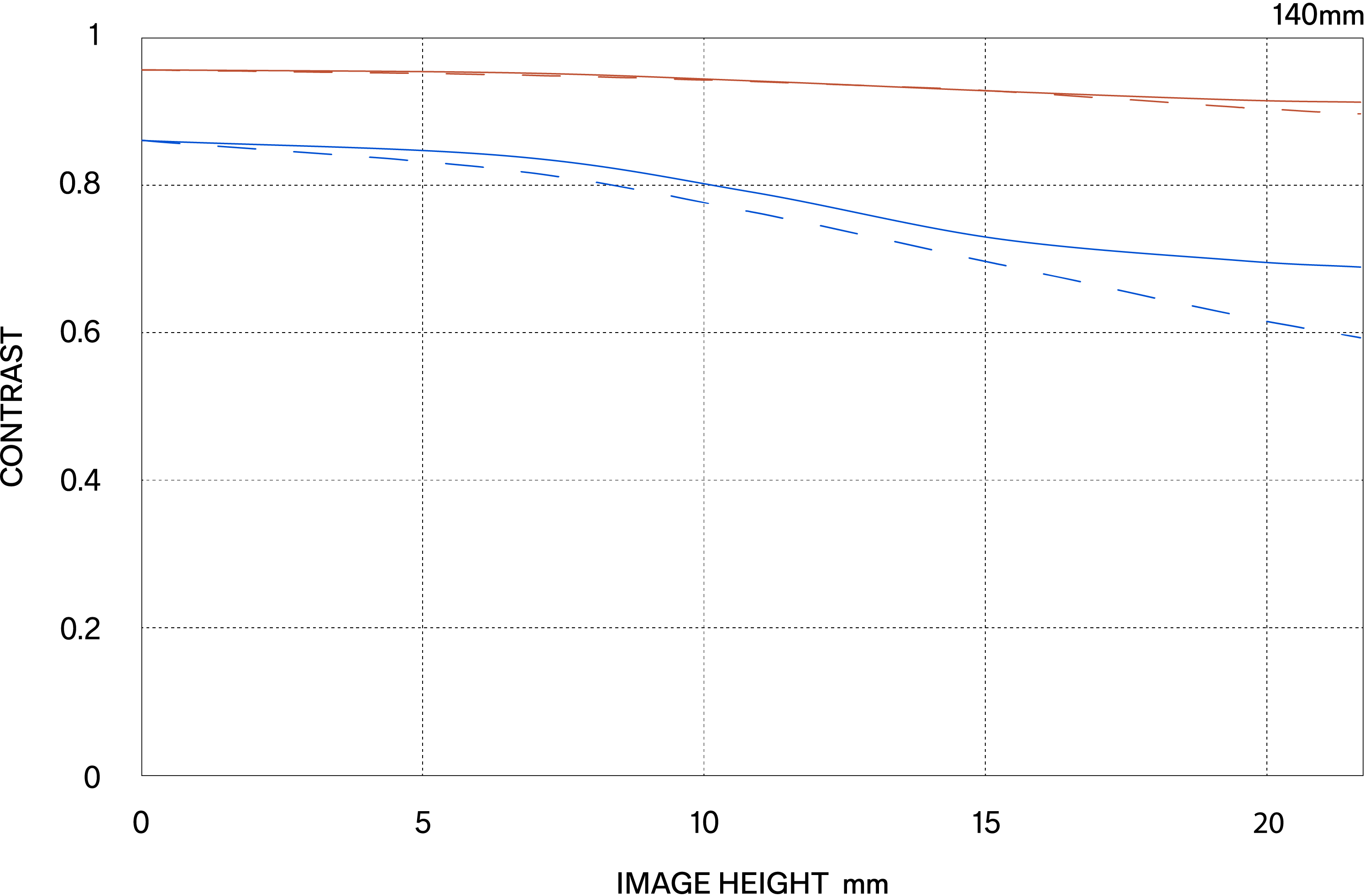

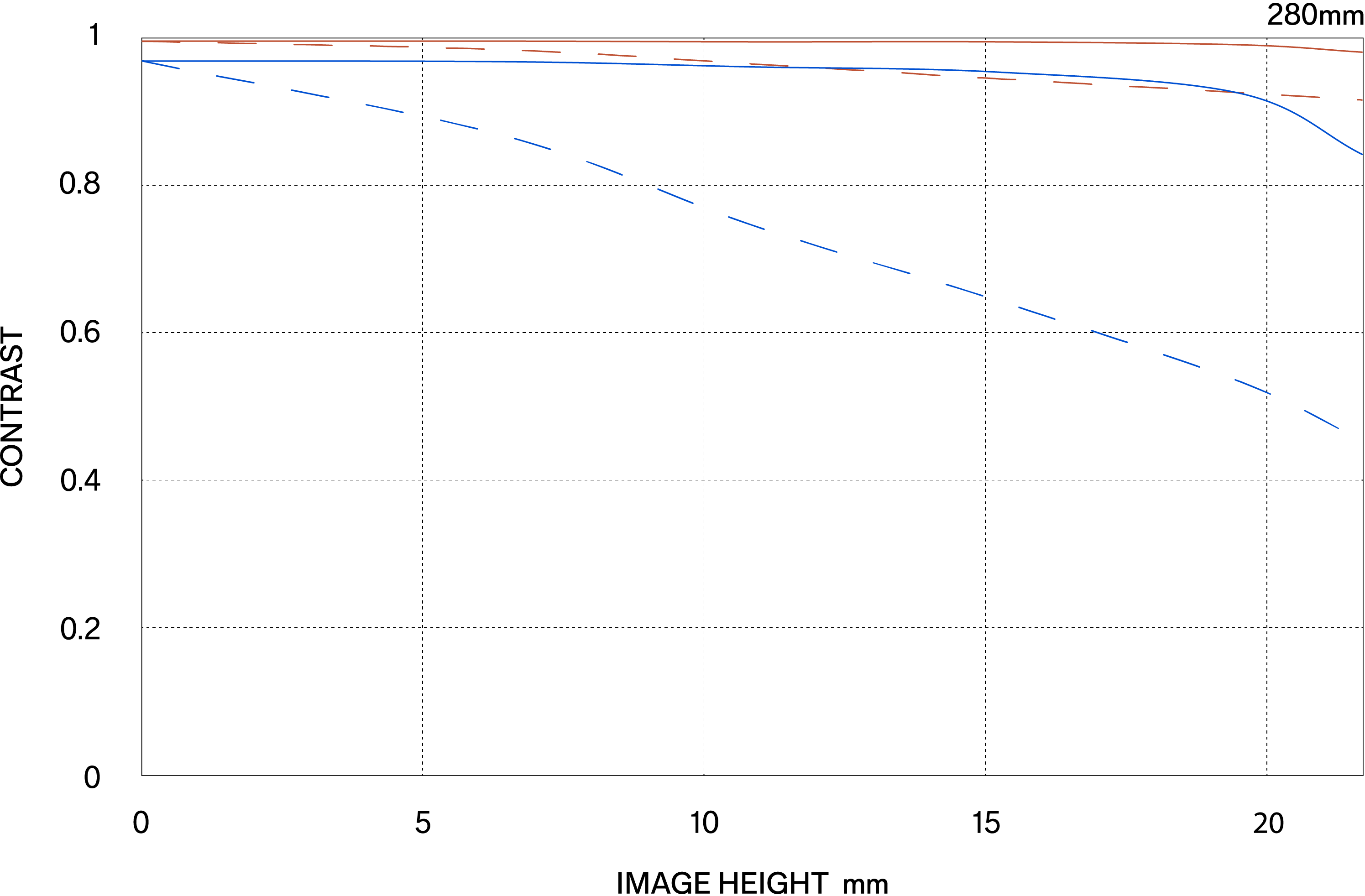

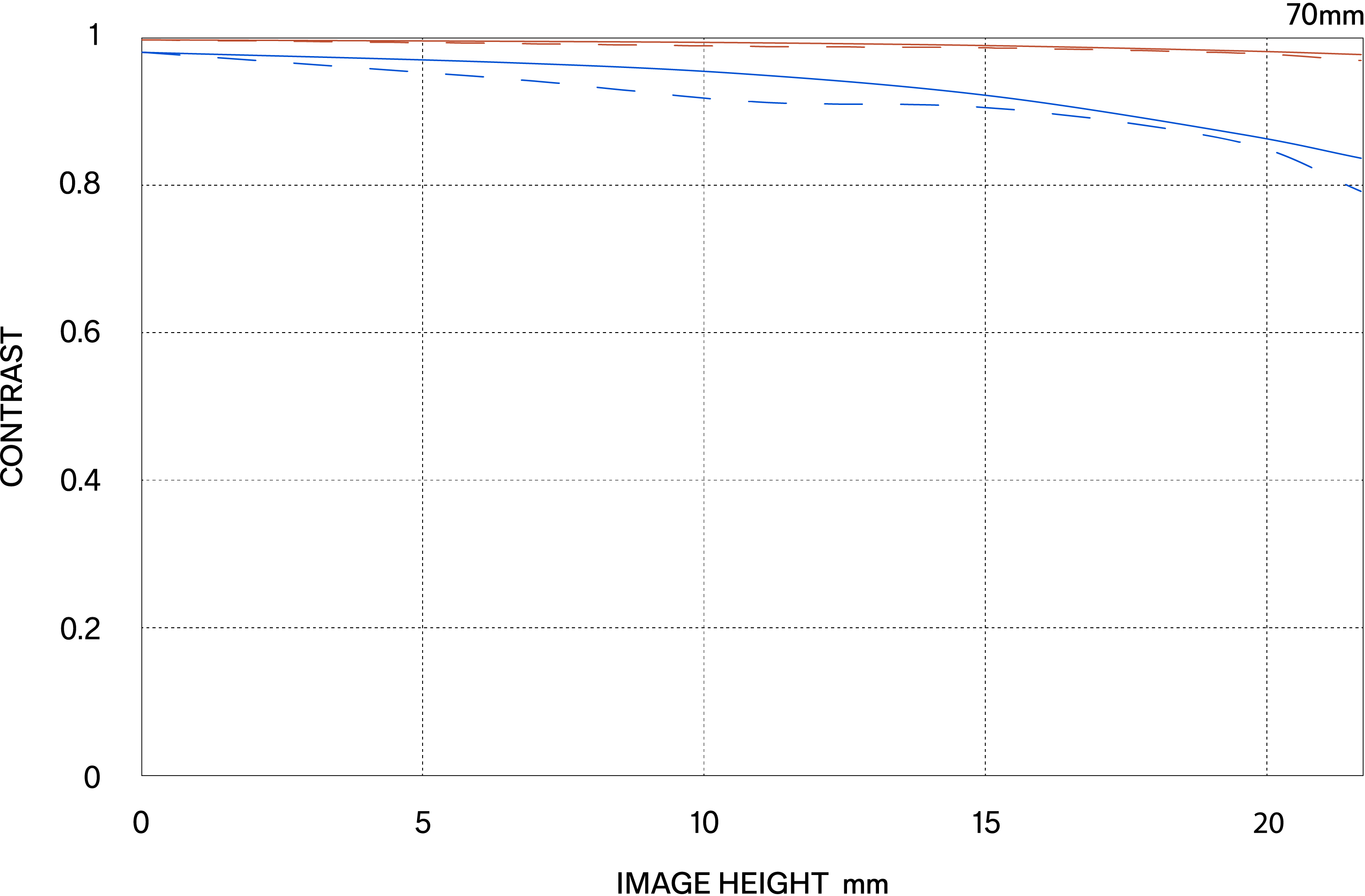

Geometrical MTF Chart

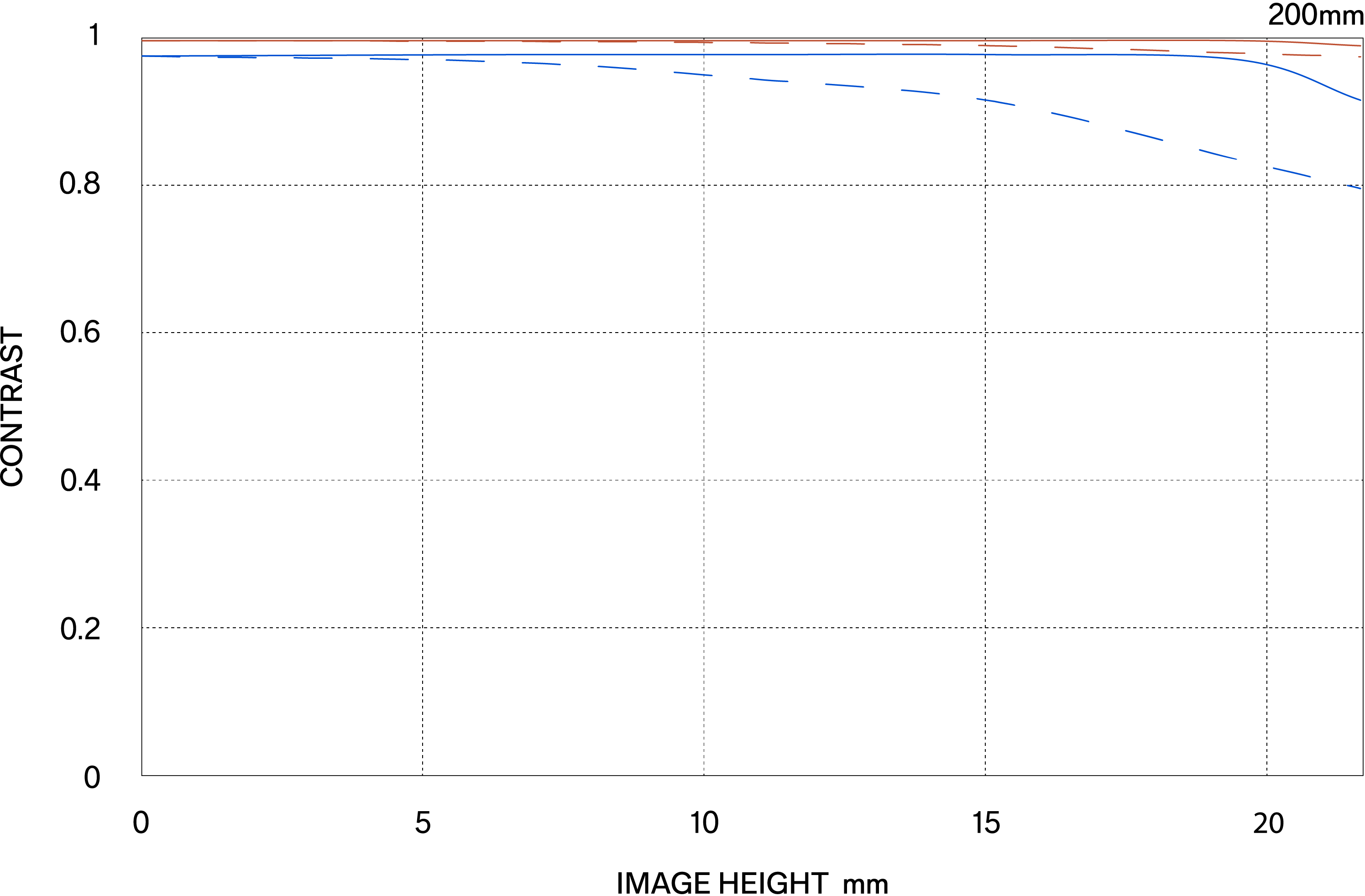

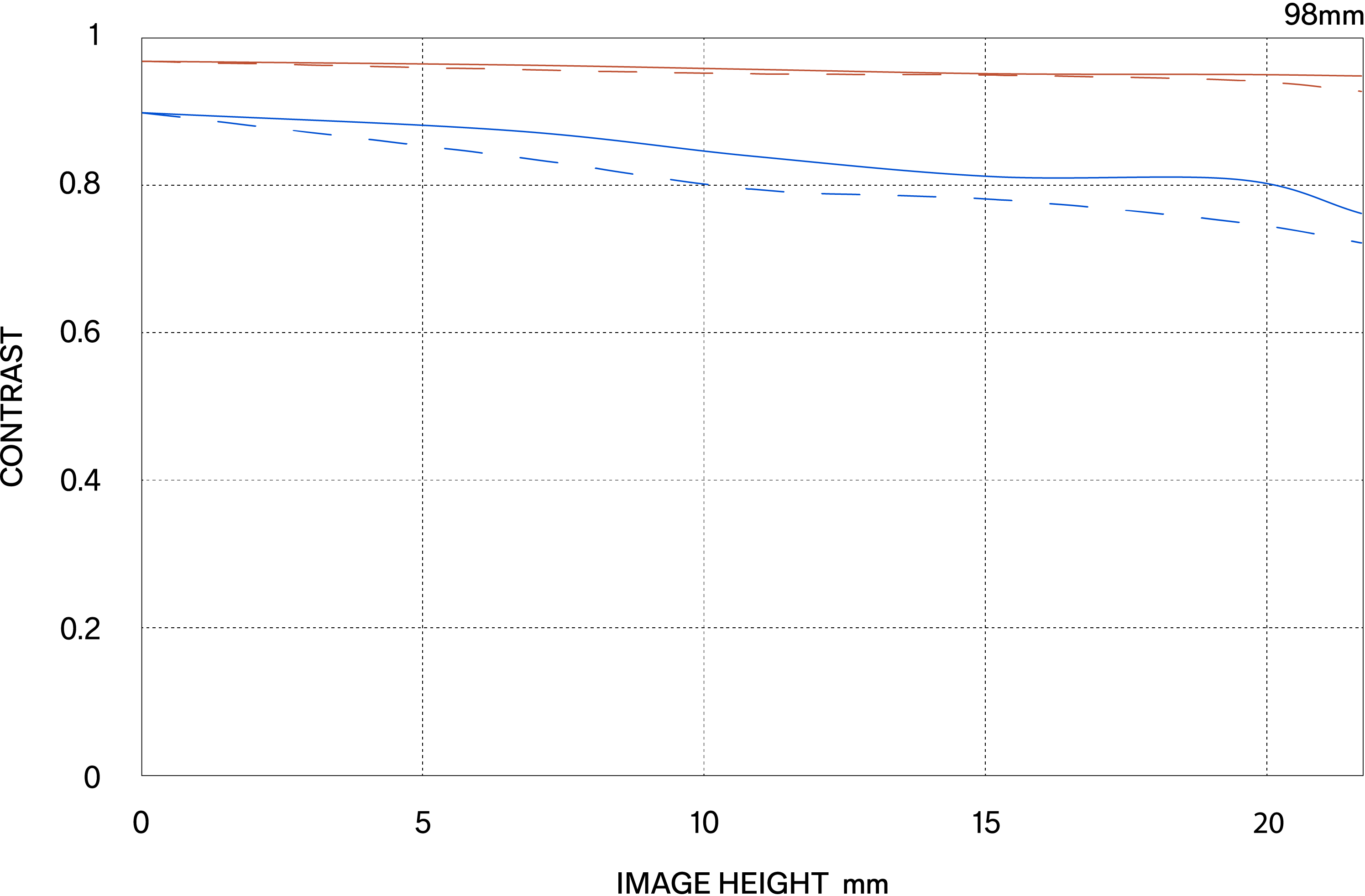

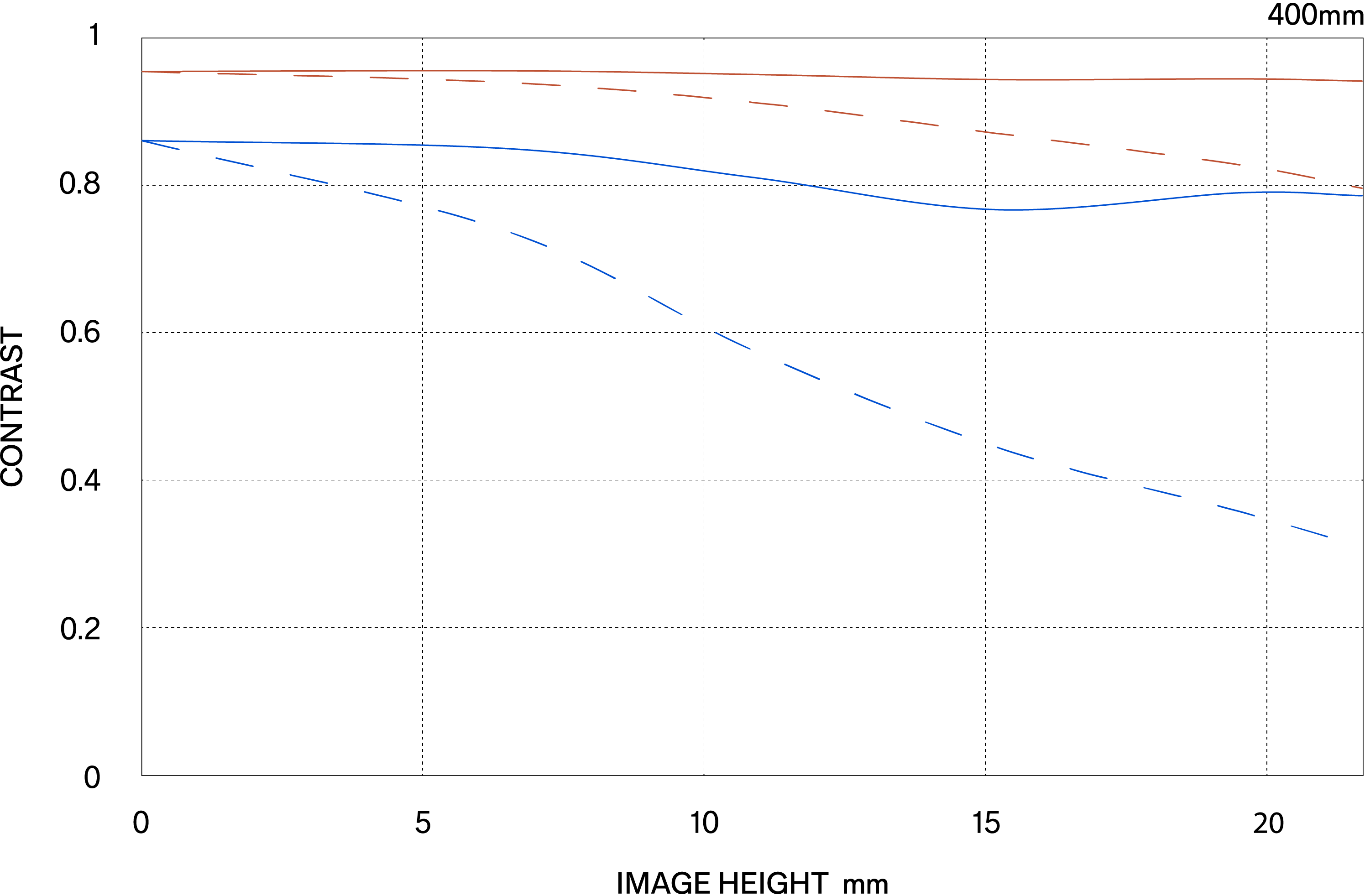

Diffraction MTF Chart
